SICL 20

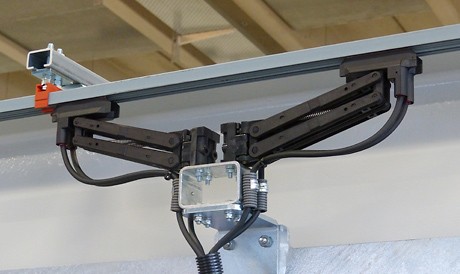

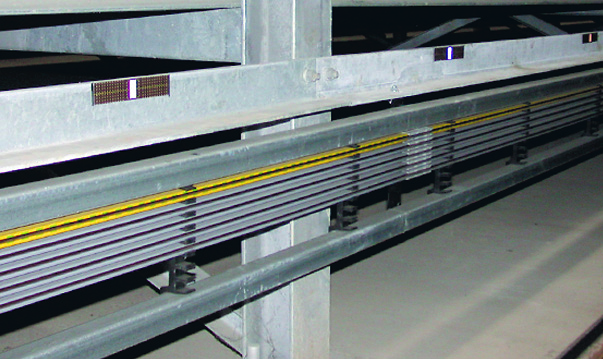

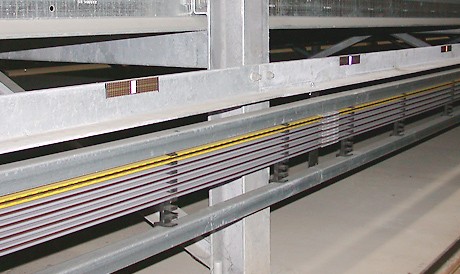

The SICL20 system is a plastic-insulated conductor line system protected against contact for indoor applications, designed in compliance with VDE 0100. It is suitable for amperages up to 200 A and is also particularly suitable for the application of monorail conveyors.
Technical data
| Housing material | PVC |
| Standard length | 6000 mm |
| Number of conductors | unlimited |
| Suspension distance | max. 1000 mm |
| Voltage | 690 V |
| Current capacity (100% ED at 35°C) | 200 A |
| Conductor bar cross-section | 50 mm² |
| Conductor material | copper |
| Ambient / housing temperature | - 30 °C to + 90 °C |
| Travel speed | 400 m/min |
| Protection class (DIN VDE 0470 T.1/EN 60529) | IP23 |

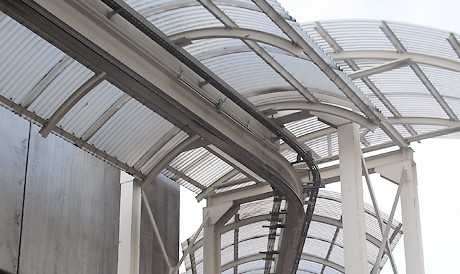

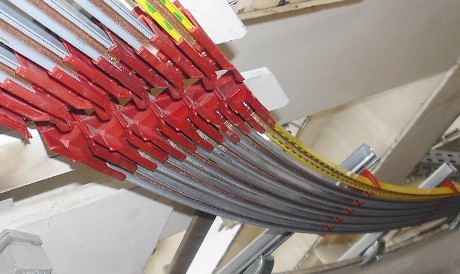

| Smallest curve radius, vertical/horizontal | > 500 mm |
| Application area | in-/outdoors |
| Fire protection equipment | UL94 / V0 |
